Administering your VMware environment often requires remote access to your ESXi hosts. Access to the ESXi shell via SSH offers administrators the ability to maintain, troubleshoot, and remediate issues by using a Secure Shell client such as PuTTY. For security purposes, SSH is disabled by default. However, you can enable it for remote command execution in multiple ways. In this post, we will go through the different processes of enabling SSH on VMware ESXi 6.5 hosts.

  • Direct Console User Interface (DCUI)
  • vSphere Web Client – Host
  • vSphere Web Client – vCenter

Enable SSH | DCUI

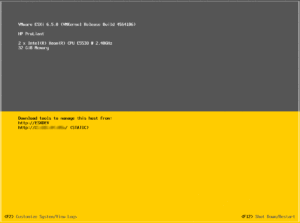

Remote console to the DCUI screen of the ESXi host.

ESXi DCUI

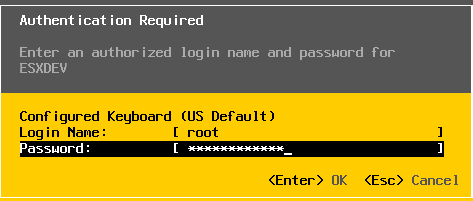

At the DCUI screen, press F2 to log in.

DCUI Login

From the System Customization screen, select Troubleshooting Options.

DCUI Troubleshooting

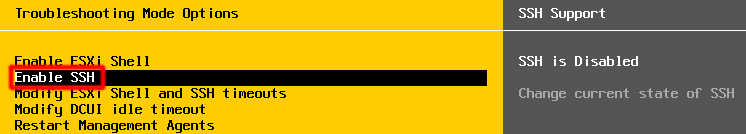

Under Troubleshooting Mode Options, choose Enable SSH.

DCUI Enable SSH

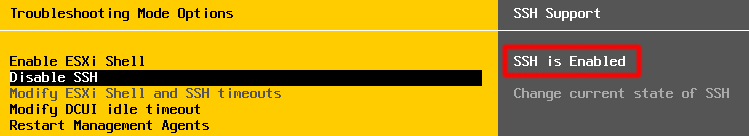

SSH will now show Enabled.

DCUI SSH

Press ESC to back out to the main DCUI screen.

Enable SSH | vSphere Web Client – Host

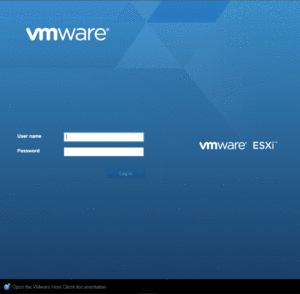

Log into the ESXi host via the Web Client.

ESXi Host Login

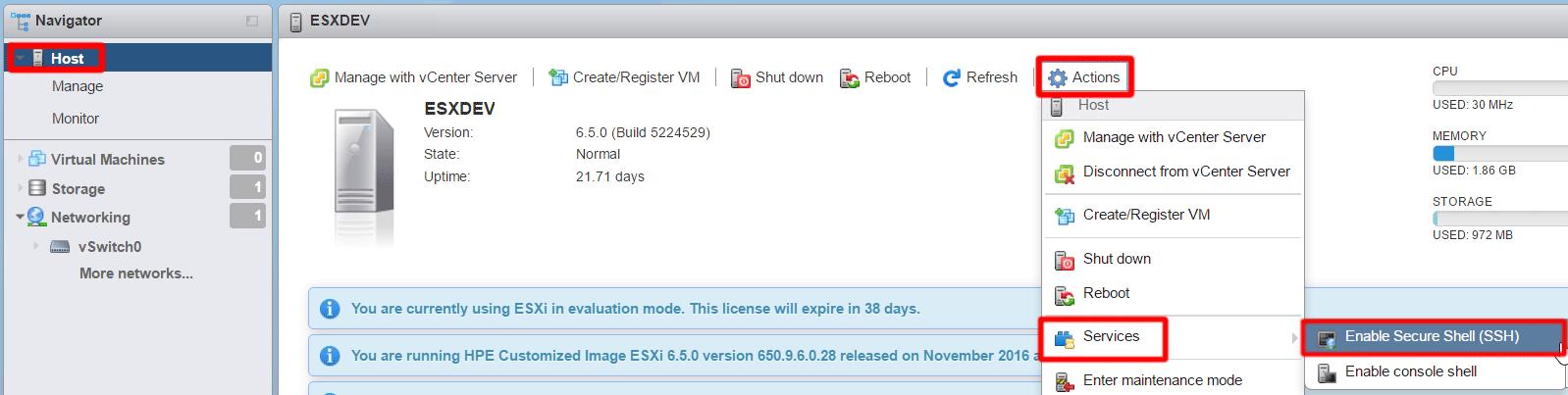

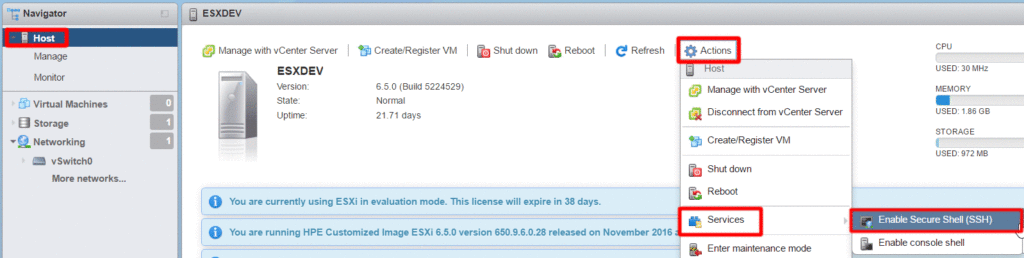

From the home page, select Host and navigate to the Actions gear. From the Actions menu select Services, and choose Enable Secure Shell.

Host SSH

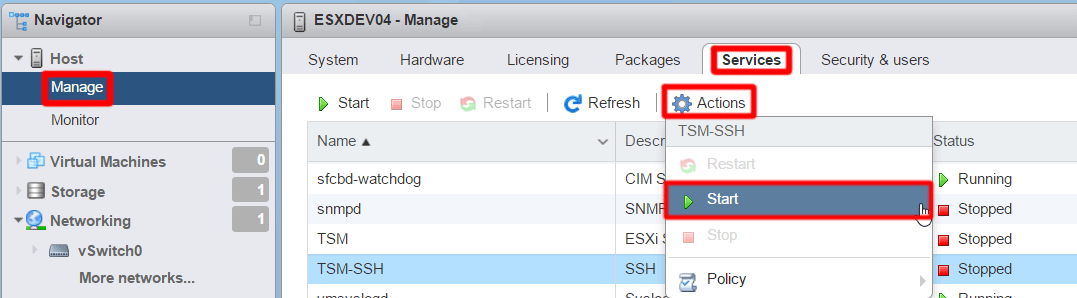

Additionally, SSH can also be enabled from the Services tab under Manage. Simply select SSH and Start from the Actions gear.

Host SSH Start

Enable SSH | vSphere Web Client – vCenter

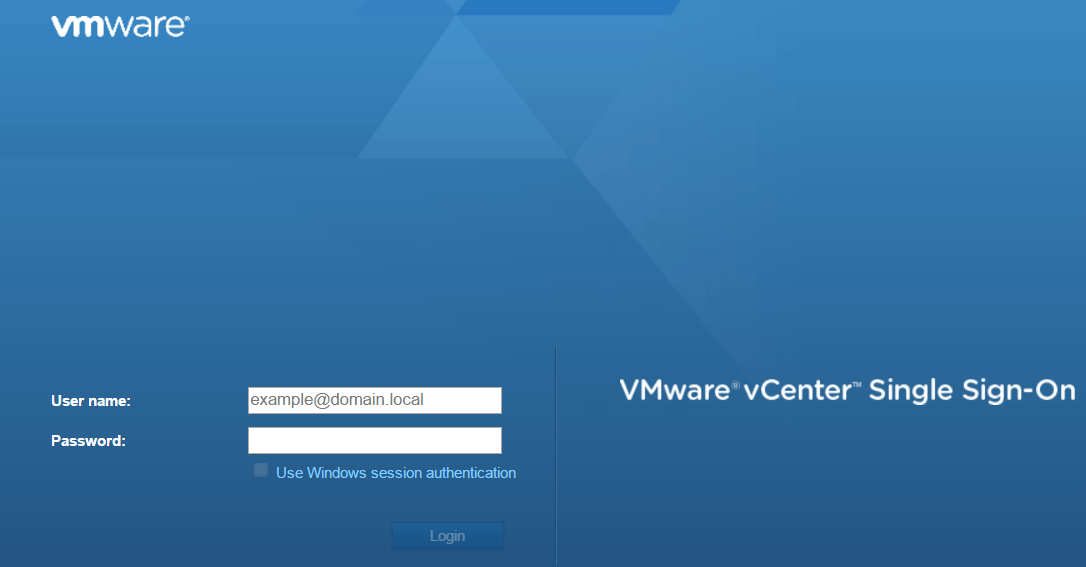

Log into the vCenter instance via the web client.

vCenter Login

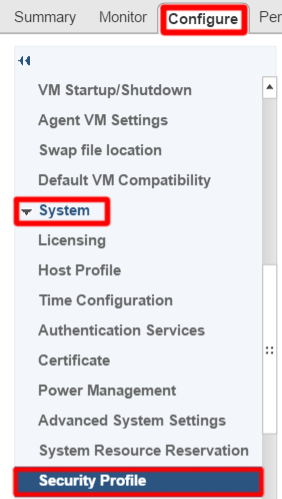

Select the pertinent host, navigate to the Configure tab. Scroll down to the System section, and select Security Profile.

vCenter Security Profile

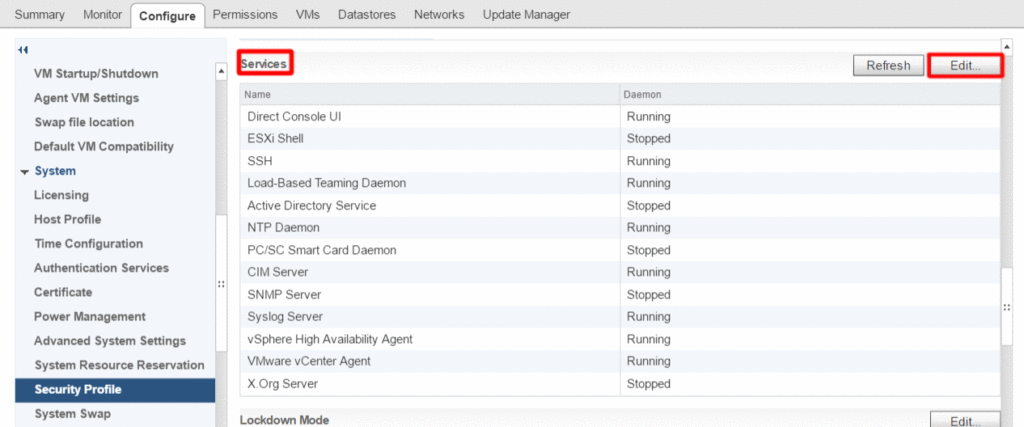

Scroll down to the Services section and click Edit.

vCenter Services

Locate the SSH service and select Start.

vCenter SSH

You can now access your ESXi host remotely via a Secure Shell client. Lastly, it is always wise to Stop/Disable SSH once you are done.
